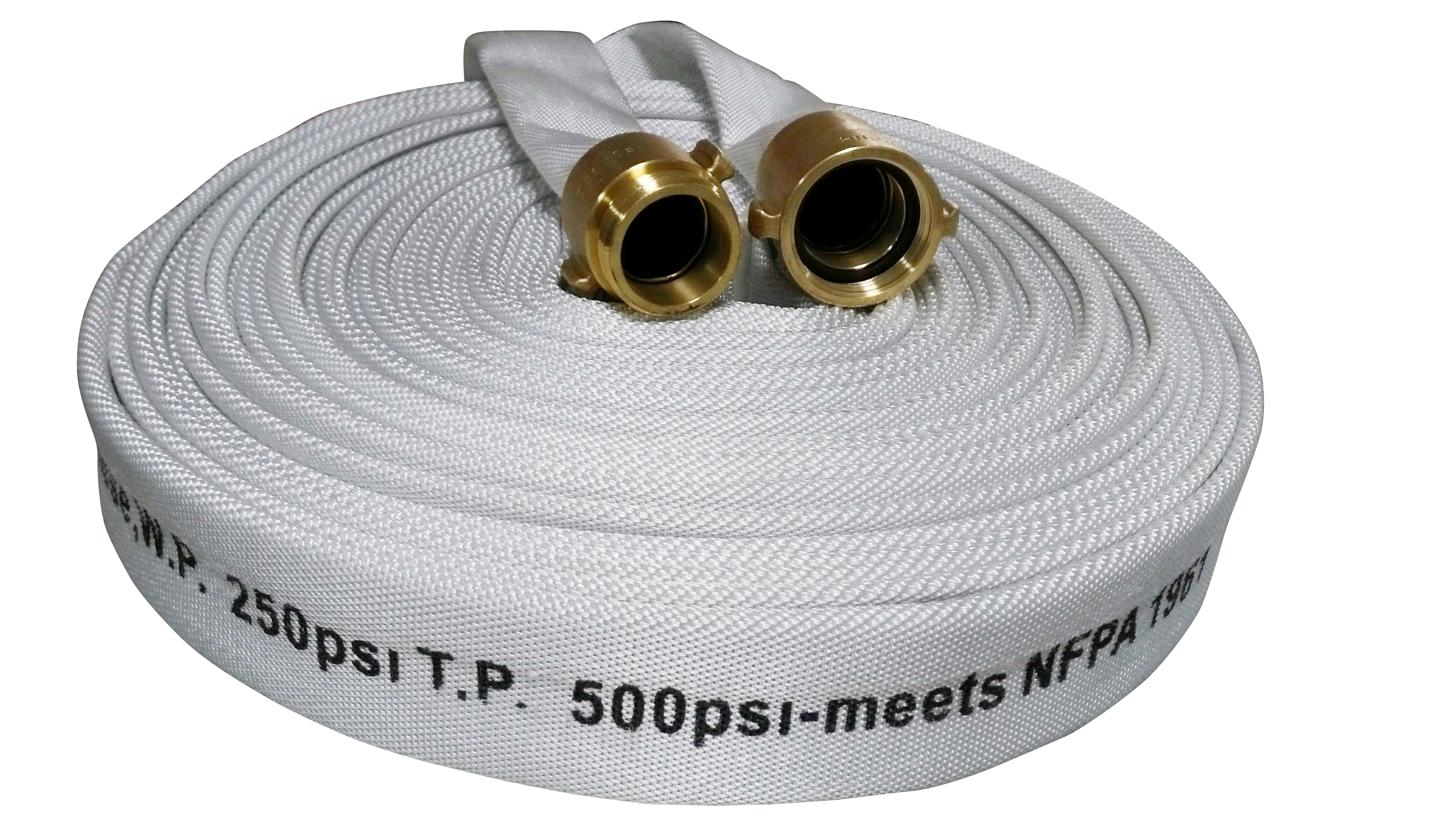

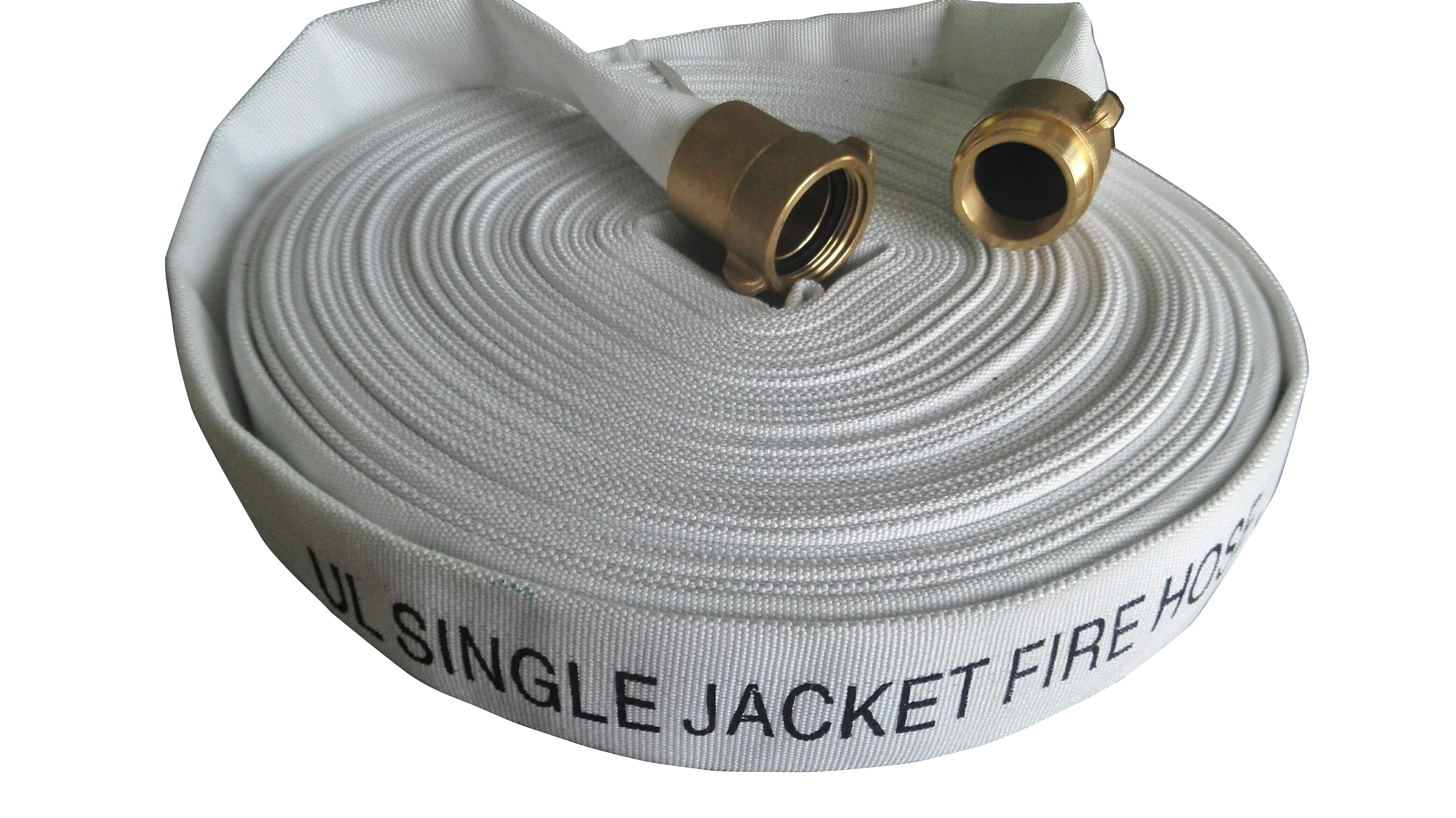

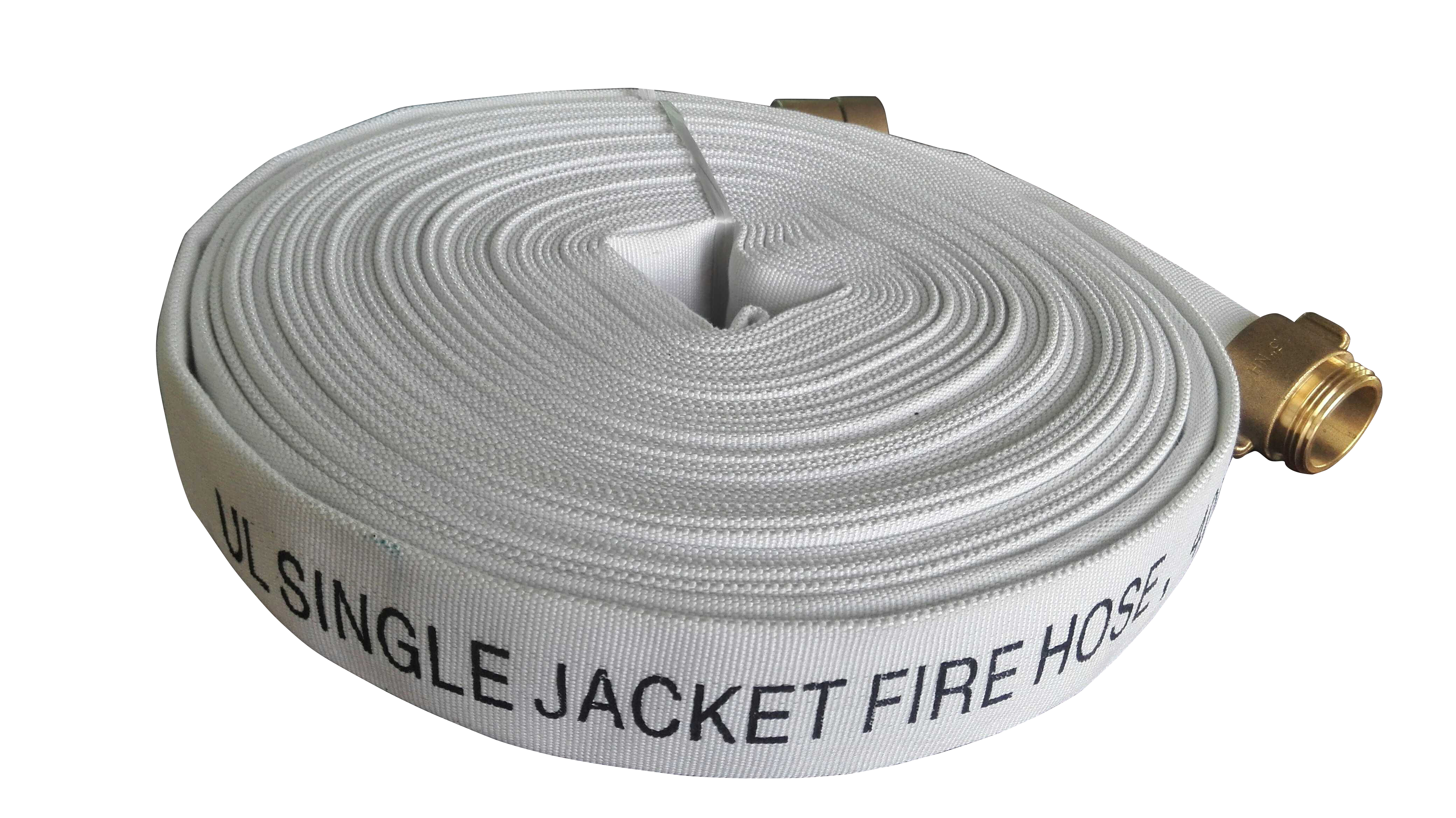

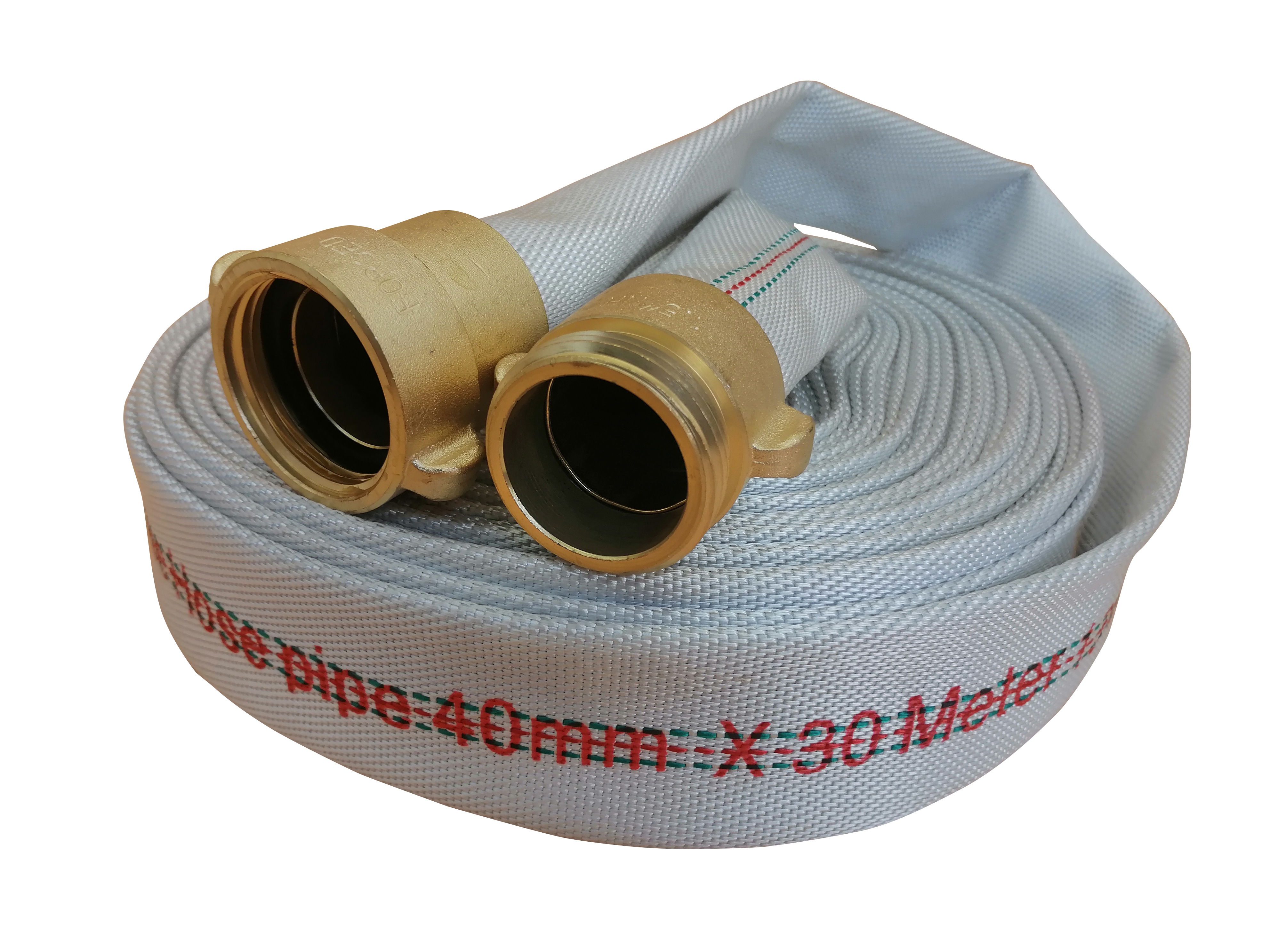

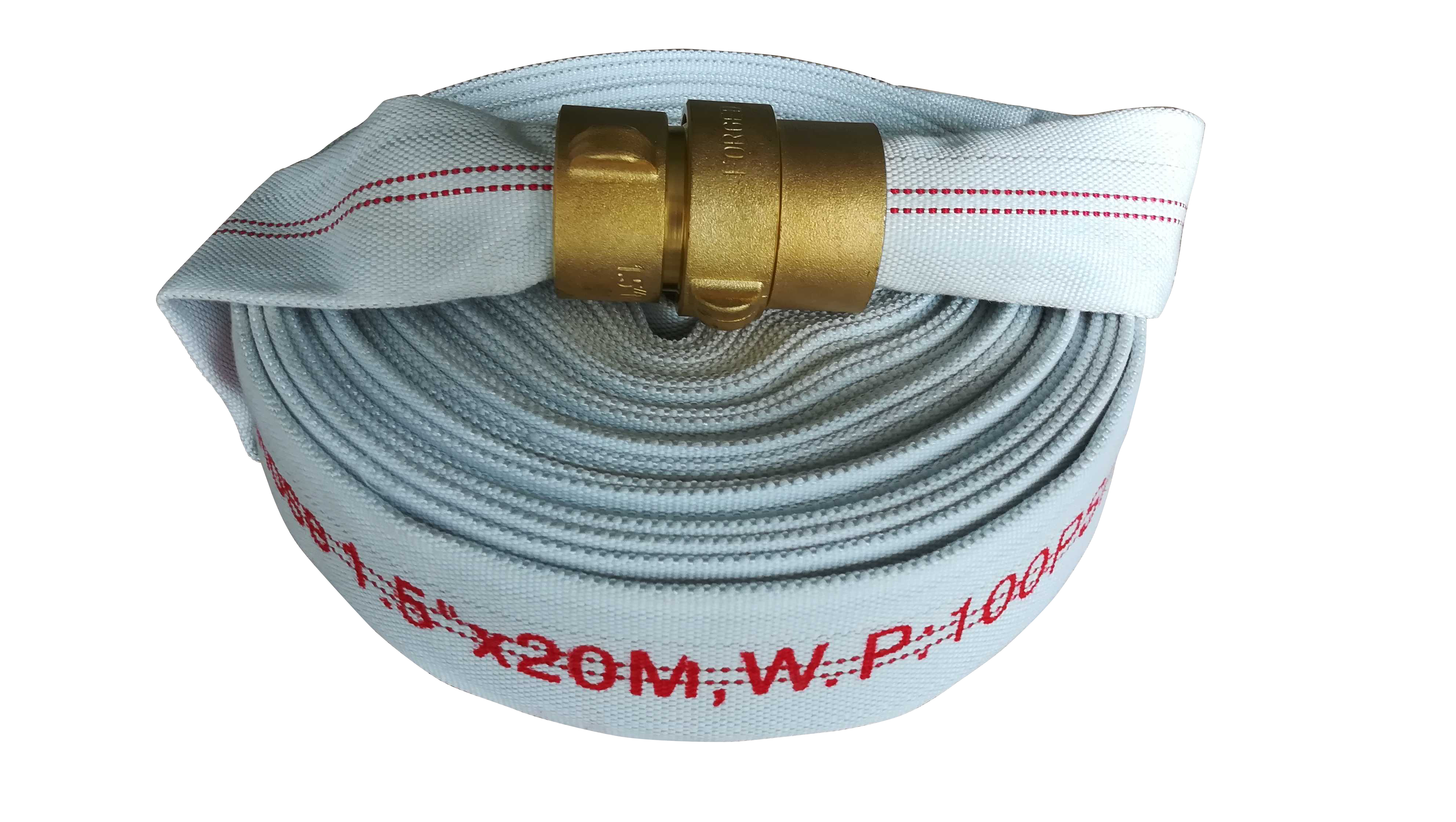

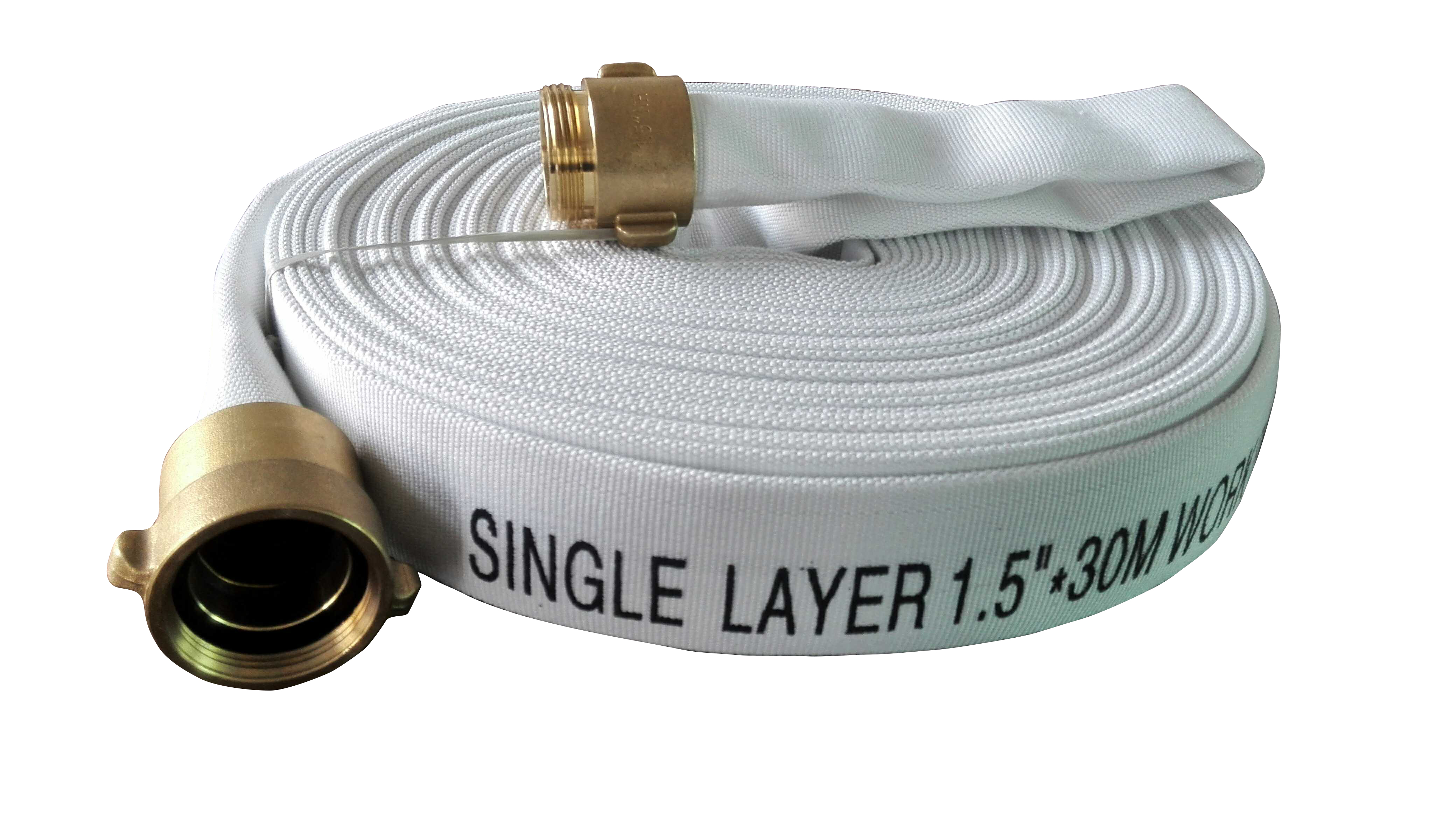

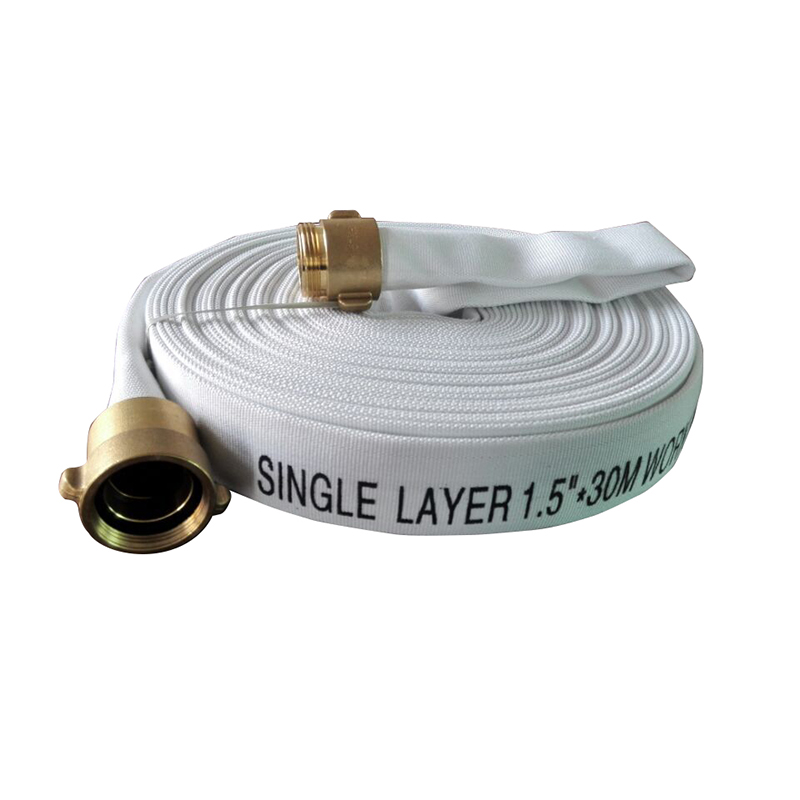

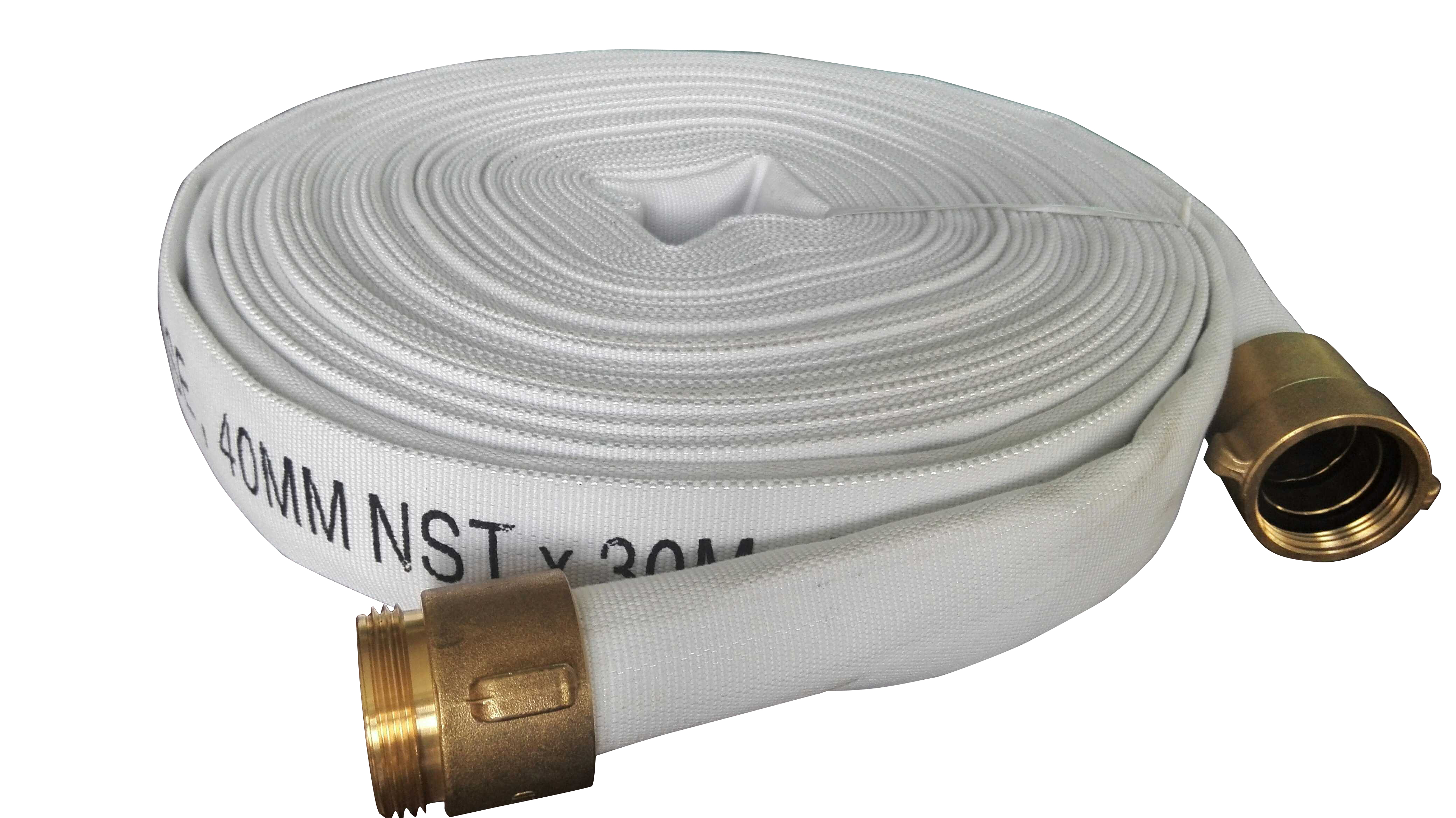

Fire Hose with American Brass NH Coupling (1", 1.5", 2")

Customizable High-Pressure Fire Hose with Standard NH Thread Brass Couplings & Multiple Material Options

Overview
Related Products

Overview

This product line offers robust fire hoses compatible with American National Hose (NH) standard brass couplings in 1-inch (25 mm), 1.5-inch (40 mm), and 2-inch (50 mm) sizes. All hoses are customizable in length, material, and color to meet specific operational requirements.

🔧 Key Specifications

Coupling Standard:

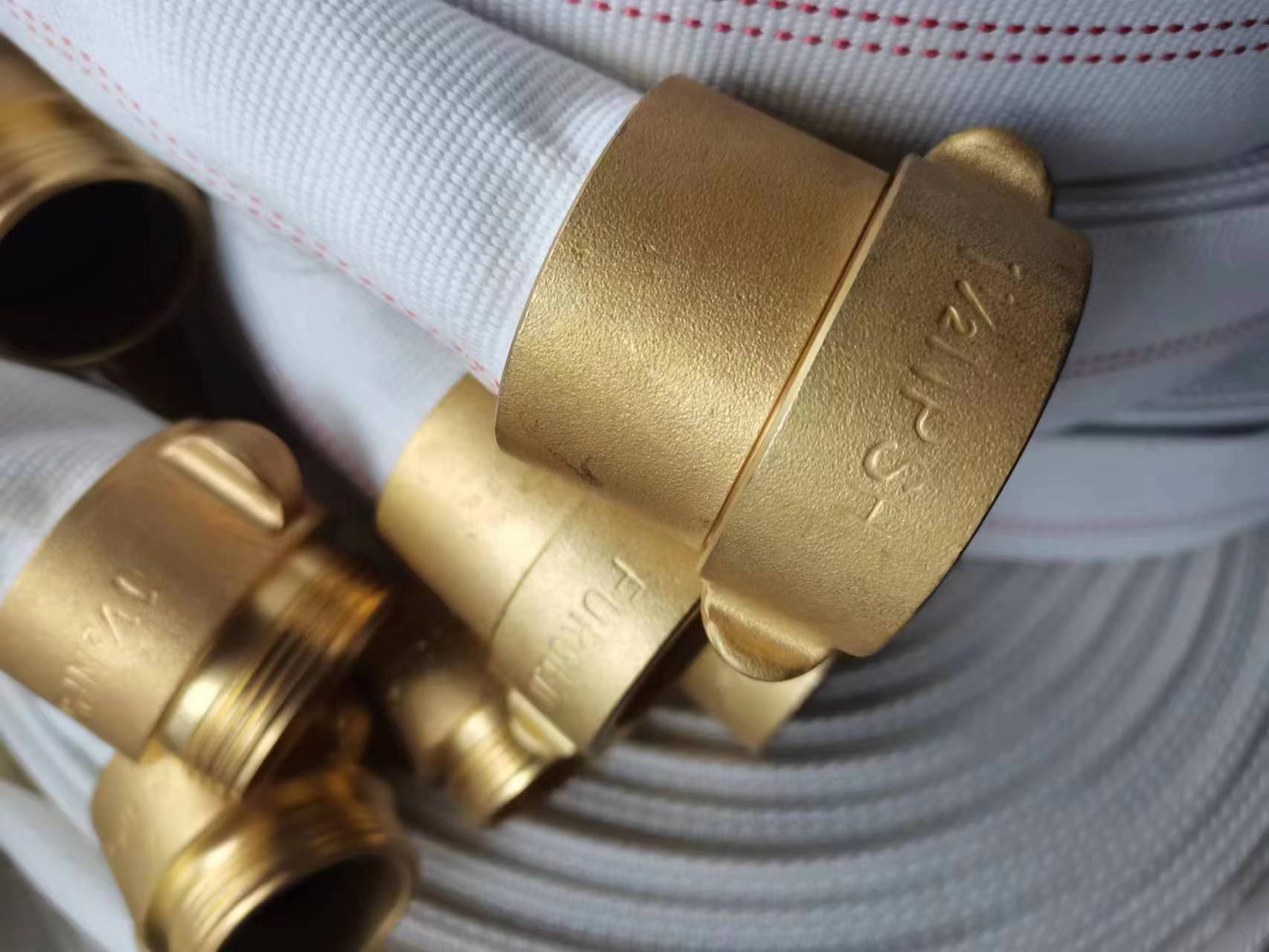

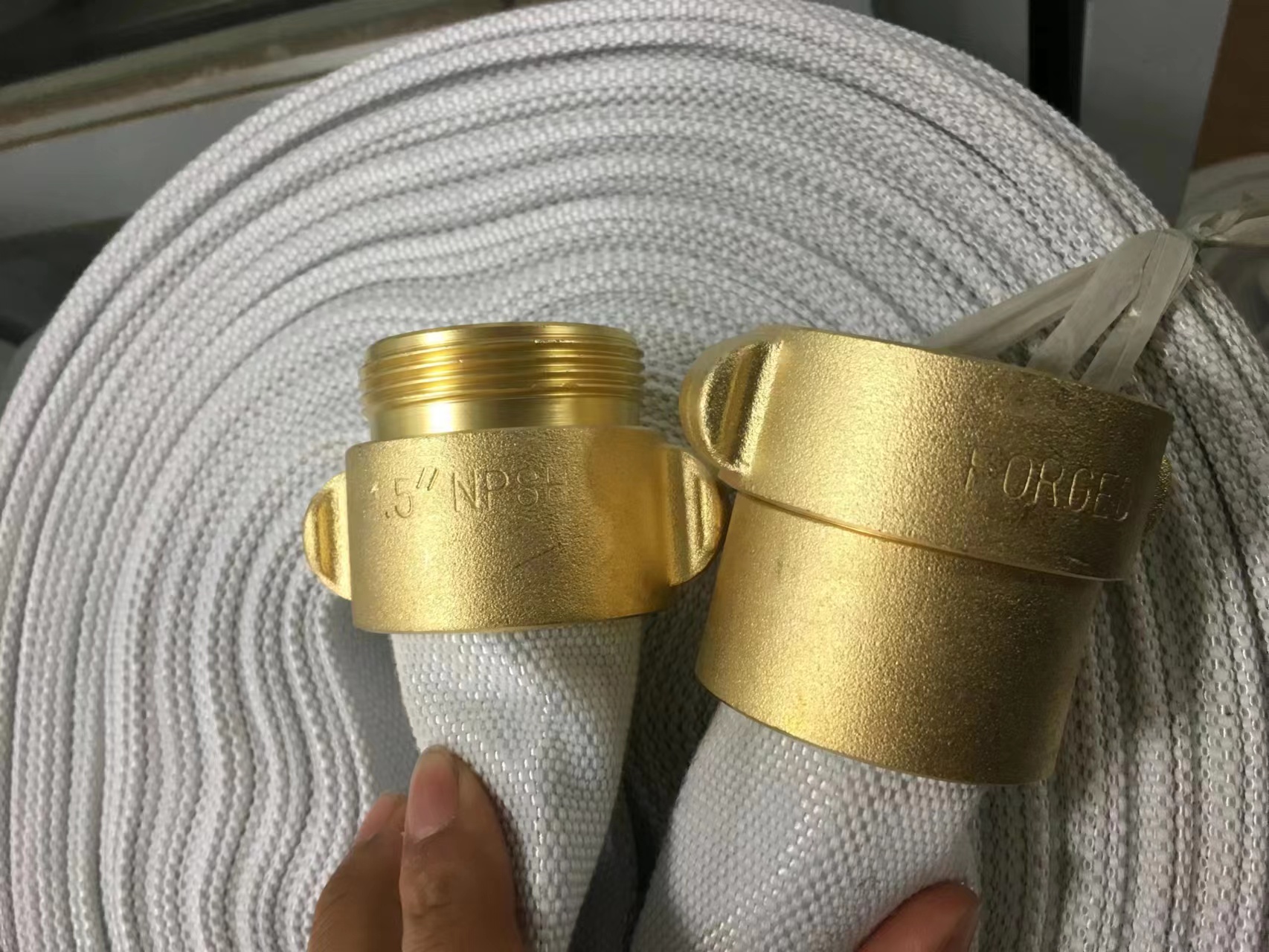

- Brass NH threaded couplings (US standard), compliant with fire safety regulations.
- Available sizes: 1" (25 mm), 1.5" (40 mm), 2" (50 mm).

Hose Performance (by Model):

Model	Work Pressure	Burst Pressure	Compatible Inner Diameters
8	0.8 MPa	2.4 MPa	25/40/50/65/100 mm
10	1.0 MPa	3.0 MPa	25/40/50/65/100 mm
13	1.3 MPa	3.9 MPa	25/40/50/65/100 mm
16	1.6 MPa	4.8 MPa	25/40/50/65/100 mm
20	2.0 MPa	6.0 MPa	25/40/50/65/100 mm
25	2.5 MPa	7.5 MPa	25/40/50/65/100 mm

Customization Options:
- Lining Materials: EPDM, Rubber, PU, PVC, TPR, TPE.
- Jacket Types: Double jacket, thickening jacket, twill, color plain, polyester weave, coated, or plain weave.
- Colors: White, red, yellow, green, blue, black.
- Length: Standard 20–30 m (custom lengths available).
Applications:

Ideal for industrial firefighting, emergency response, and high-pressure water delivery systems requiring US-standard NH couplings.

Note: Brass NH couplings ensure durability and compatibility with US firefighting equipment. All specifications align with the product table provided.
