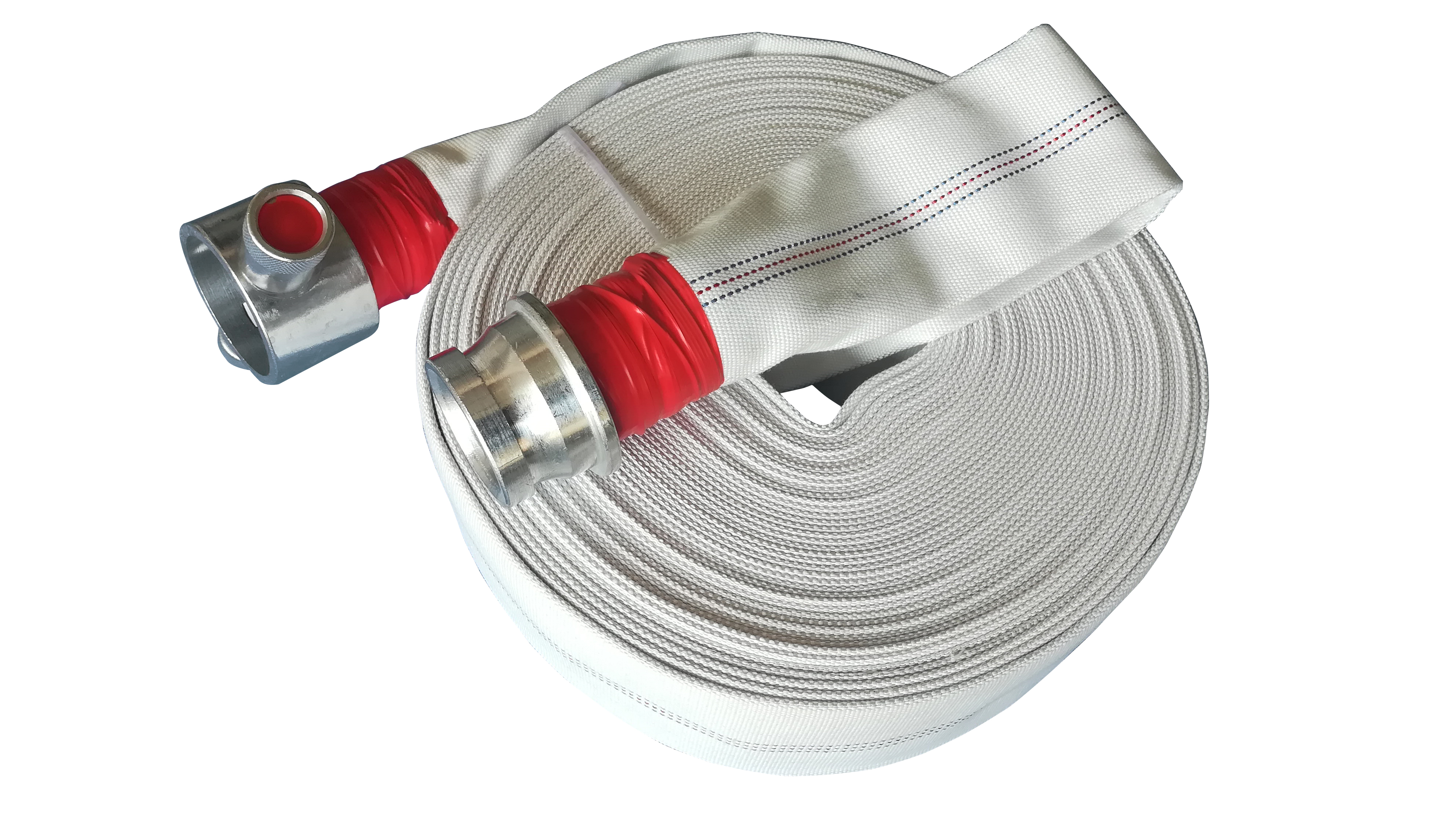

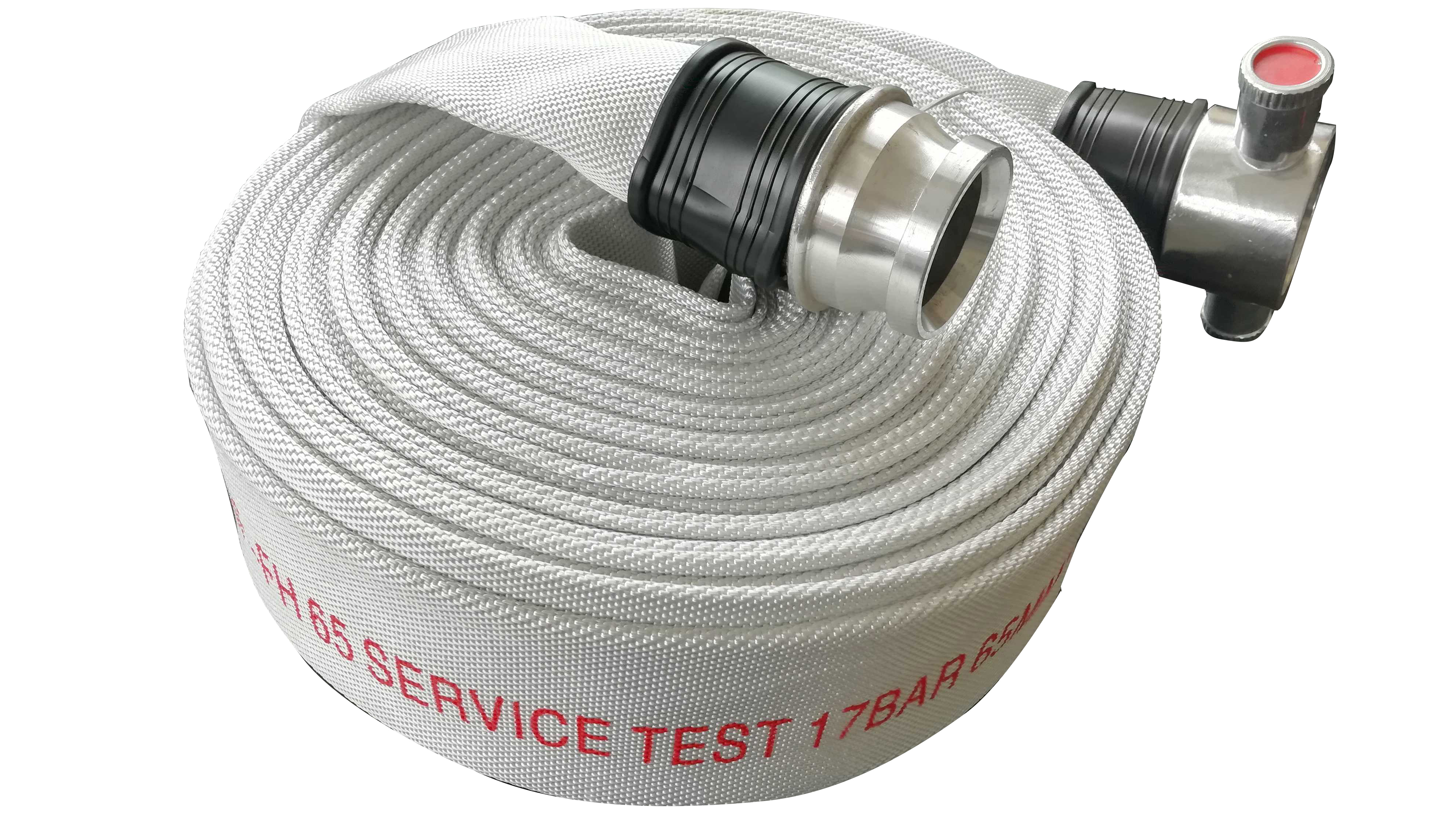

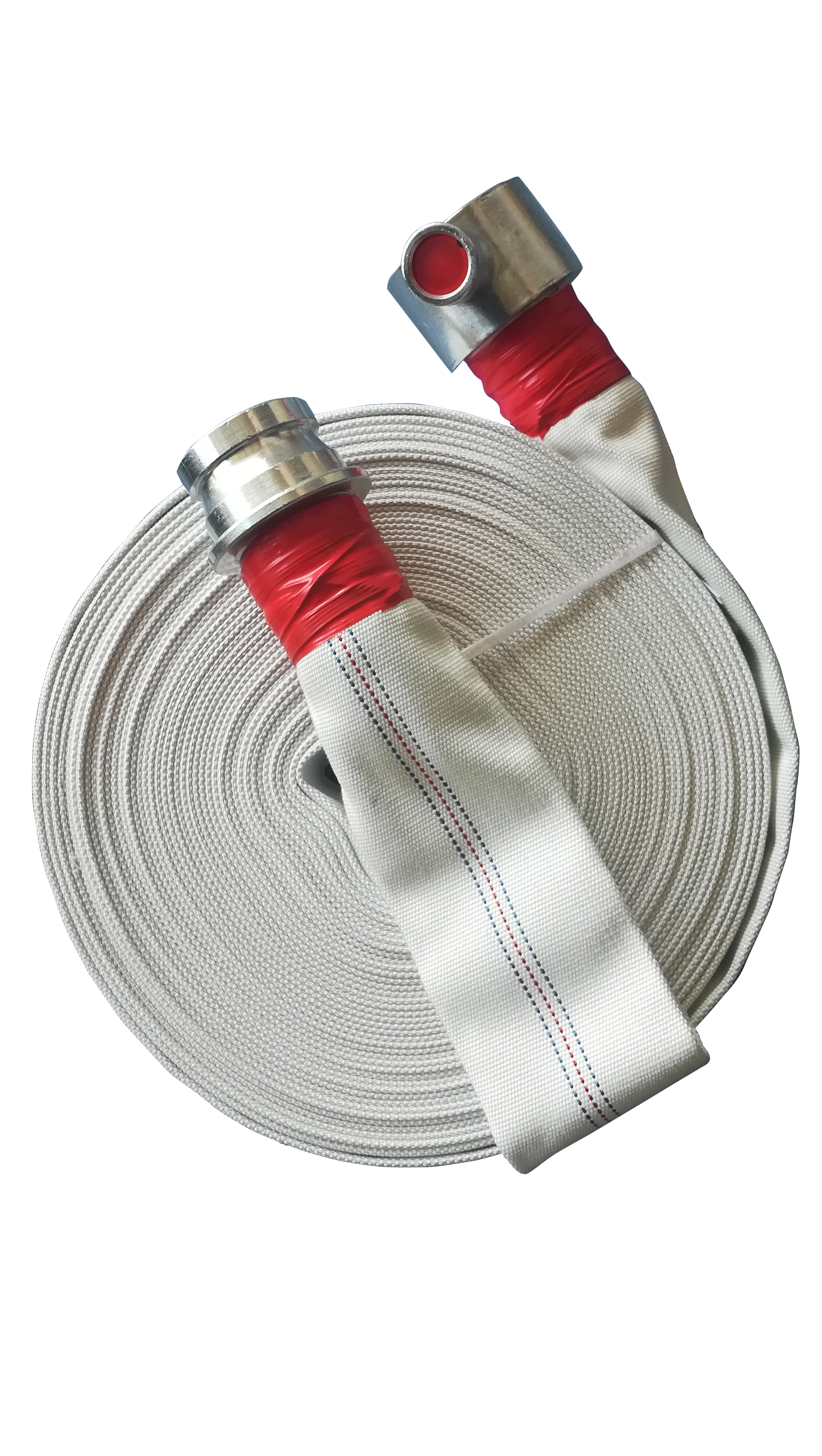

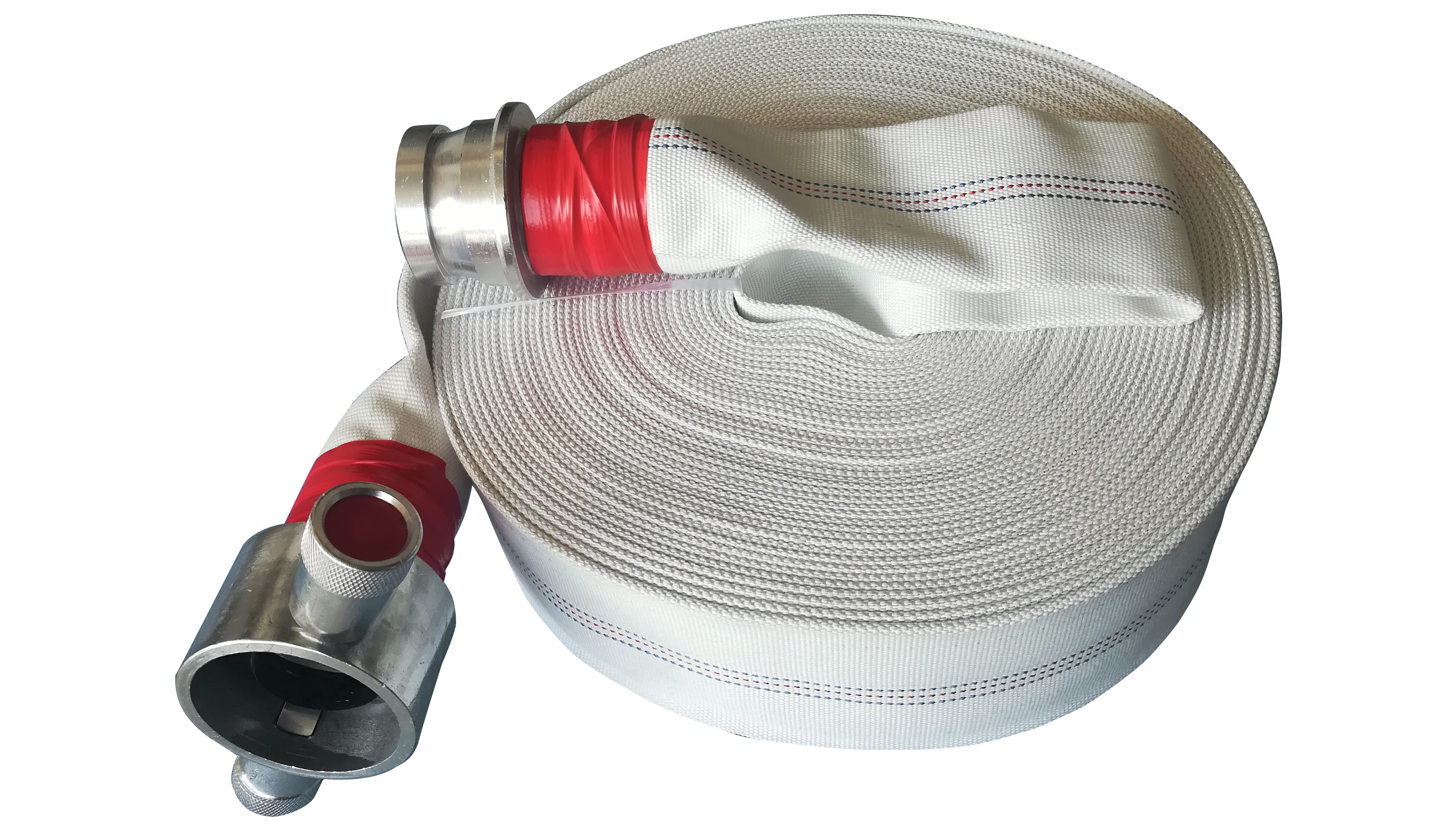

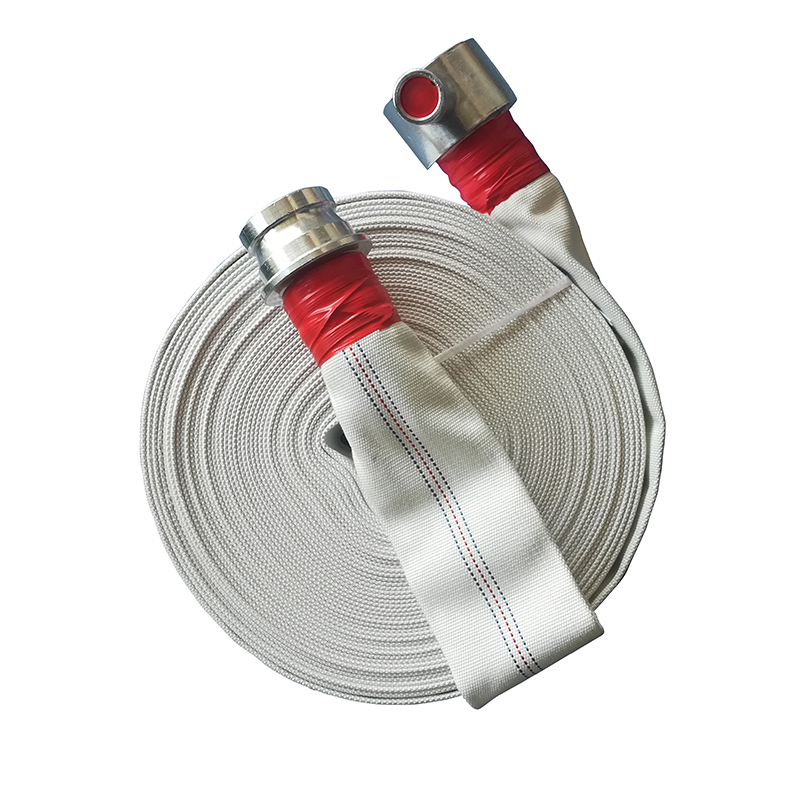

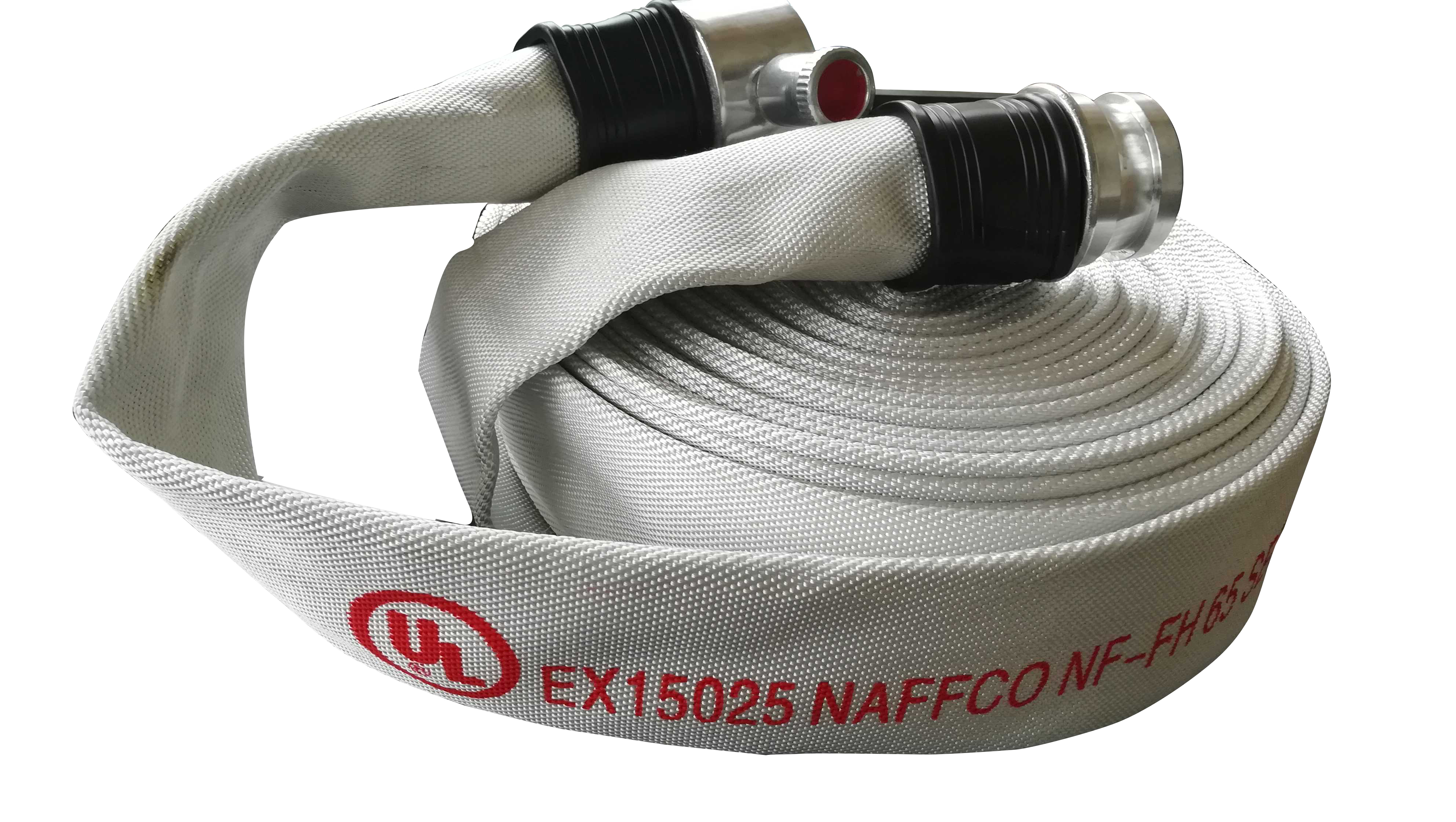

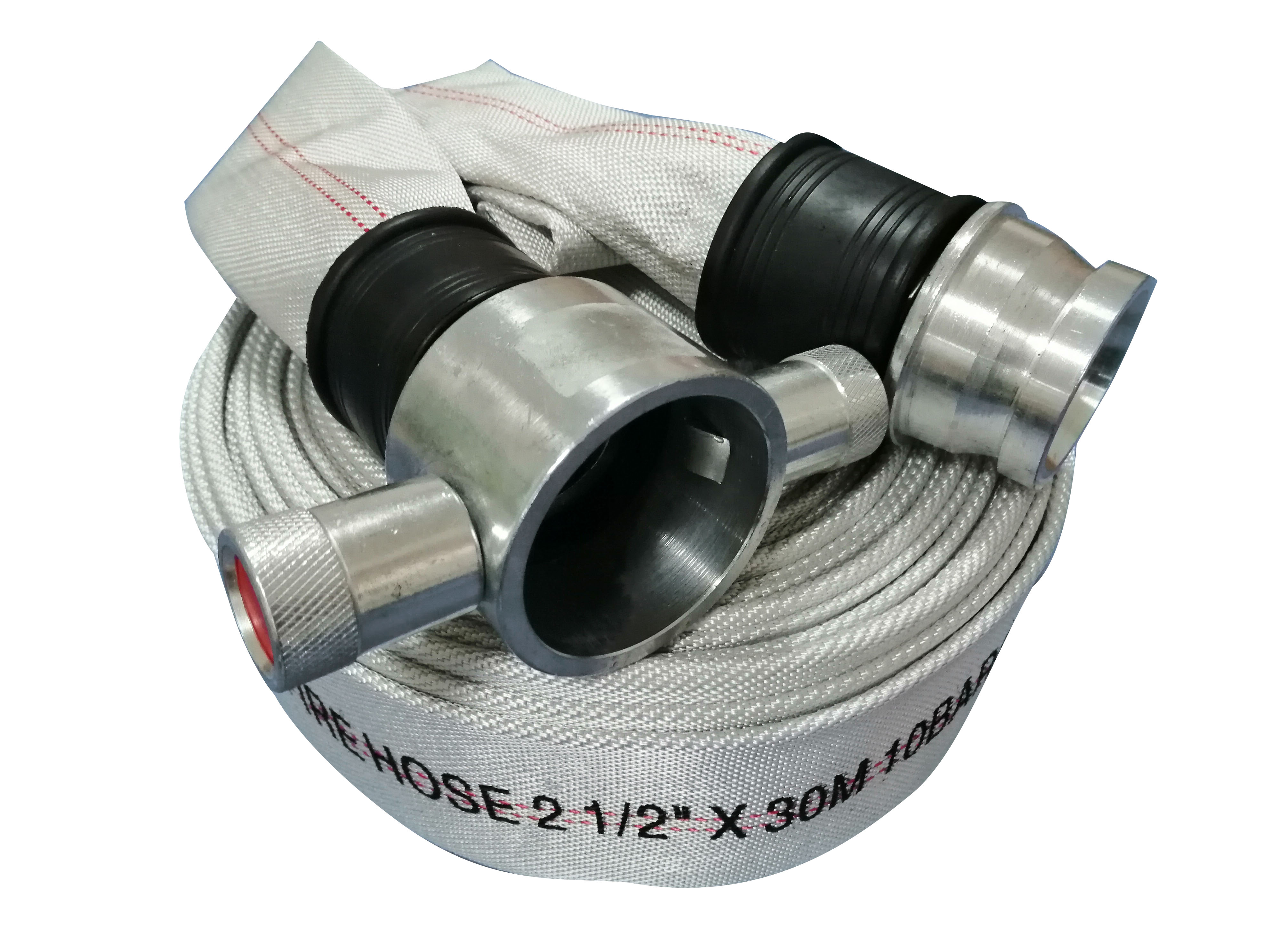

British Standard Fire Hoses with BS Aluminum Couplings

British Standard Fire Hoses with BS Aluminum Couplings

Comprehensive Range (1", 2", 3") with Customizable Specifications

Overview
Related Products

Overview

This product information sheet details a range of high-performance industrial and fire hoses manufactured to British Standards, featuring BS aluminum couplings.

Key Specifications:

Available Models & Pressure Ratings: The product line includes six models (8, 10, 13, 16, 20, 25) with progressively higher pressure ratings.
- Working Pressure: Ranges from 0.8 MPa (116 psi) for Model 8 to 2.5 MPa (363 psi) for Model 25.
- Burst Pressure: Ranges from 2.4 MPa to a robust 7.5 MPa, ensuring a high safety factor.
Sizes & Dimensions:
- Inner Diameter: Available in standard sizes: 25mm (1"), 40mm (~1.5"), 50mm (2"), 65mm (~2.5"), and 100mm (3").
- Length: Standard lengths are customizable between 20 to 30 meters per hose.
Construction & Materials:
- Liner Material: Offers a wide selection including EPDM, Rubber, Polyurethane (PU), PVC, TPR, and TPE. Specific models highlight PVC, TPR, TPU, EPDM, and Rubber options.
- Jacket Construction: The outer jacket can be specified as a Double Jacket, Thickening Jacket, Twill weave, or with a Coating, made from polyester yarn.
- Product Structure: The range includes Single Jacket fire hoses, Double Jacket fire hoses, and heavy-duty Durable hoses (e.g., Double rubber/PVC hose).
Customization Options:
- Standard Colors: White, Red, Yellow, Green, Blue, Black.
- Special Customization: As noted for Model 13, special lengths, outer woven layers, and lining colors can be customized according to customer requirements.

This hose series is designed for maximum durability, flexibility, and reliability in demanding applications such as firefighting, industrial use, and emergency response.
